LOCOMOTIVE COMPONENTS SECTION |
|||
3SMR Locomotive Chassis Components |
|||
|
Ref |
Price each |
Description |
|
| LC55 | £ 0.65 |
Mainframe 1/8” brass Top-hat bearing bushes packet of 6 |
|
| LC65 | £ 0.65 |
Mainframe 1/8” brass Straw-hat bearing bushes packet of 6 |
|
| LC72 | £ 0.65 |
Phosphor Bronze contact strip per strip |
|
| LC73 | £ 1.25 |
Copper-clad board 70mm x 130mm each |
|
| LC75 | £ 0.50 |
Nickel Silver contact strip per strip |
|
| LC76 | £ 0.95 |
Etched brass Chassis spacers 12mm gauge, 8mm between frames, strip of 4 |
|
| LC77 | £ 0.95 |
Etched brass Chassis spacers 14.2mm gauge, 10.6mm between frames, strip of 4 |
|
| LC78 | £ 8.00 |
Chassis assembly jigs 12mm gauge set of 3 |
|
| LC79 | £ 8.00 |
Chassis assembly jigs 14.2mm gauge set of 3 |
|
| LC93 | £ 1.00 |
Cast Chassis spacers 12mm gauge whitemetal per pair |
|
| LC97 | £ 1.00 |
Cast loco buffer beams for cast body kits whitemetal per pair | |
3SMR Locomotive Fittings & Components |
|||
| L115 | £ 0.50 |
Cast circular loco splasher 18mm diameter each |
|
| L116 | £ 0.50 |
Cast circular loco splasher 20mm diameter each |
|
| L117 | £ 0.50 |
Cast circular loco splasher 22mm diameter each |
|
| L118 | £ 2.00 |
Tender axleguards cast whitemetal set of 6 |
|
| L119 | £ 0.60 |
Brake standard short per pair |
 |
| L120 | £ 1.00 |
Brake standard long per pair |
|
| L121 | £ 1.00 |
Tank Fillers per pair |
|
| L122 | £ 1.00 |
GWR Pannier tank Safety Valve each |
|
| L123 | £ 1.00 |
GWR Standard Safety Valve each |
|
| L124 | £ 1.00 |
GWR High Safety Valve each |
|
| L125 | £ 1.00 |
GWR Water Pick-up Dome each |
|
| L126 | £ 1.00 |
LMS Water Pick-up Dome each |
|
| L127 | £ 1.00 |

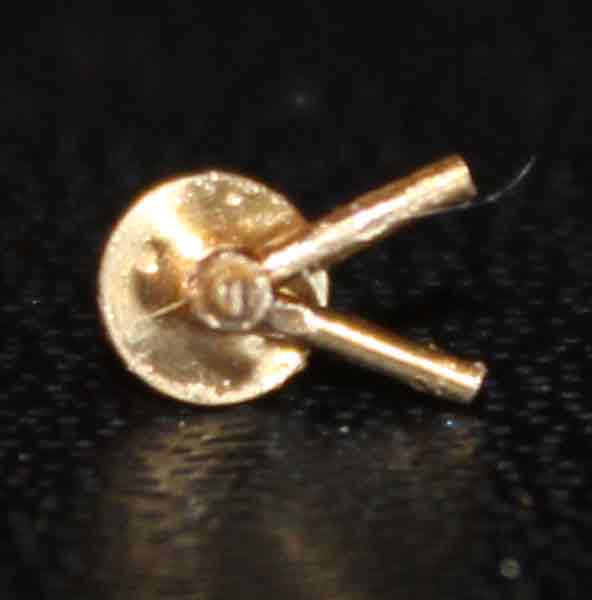

Smokebox door small 11mm diameter (2) |
  |
| L128 | £ 1.00 |
Smokebox door medium 12mm diameter (2) |
 |
| L129 | £ 1.00 |
Smokebox door large 13mm diameter each |
|
| L130 | £ 1.50 |
Loco Backhead BR Standard each |
 |
| L131 | £ 1.00 |
BR Loco Steps |  |
| L135 | £ 2.50 |
Heavy front bogie casting 6’4” M/Navy, Britannia each |
 |
| L136 | £ 2.50 |
Heavy front bogie casting 7’0” Castle each |
 |
| L137 | £ 1.00 |
Steam Dome BR/LMS each |
 |
| L138 | £ 1.00 |
Dome 7mm x 7.5mm dia |
 |
| L139 | £ 1.00 |
Dome 8mm x 7.5mm dia |
 |
| L140 | £1.00 |
Dome 9mm x 8mm dia |  |
| L141 | £ 1.00 |
Dome 8mm x 7.5mm dia |
 |
| L142 | £ 1.00 |
Oval tank fillers and tank vents. |
 |
| L144 | £ 1.00 |
Locomotive Buffers Tapered - short set of 4 |
|
| L145 | £ 1.00 |
Locomotive Buffers Parallel set of 4 |
|
| L146 | £ 1.00 |
BR Class 4 & 5 Cylinder covers cast pair |
|
| L147 | £ 1.00 |
Locomotive Buffers Tapered - long set of 4 |
|
| L148 | £ 1.00 |
Locomotive Buffers Tapered with step set of 4 |
|
| L150 | £ 1.00 |
Locomotive Reversing Lever each |
 |
| L151 | £ 1.50 |
Westinghouse Pump each |
 |
| L152 | £ 1.00 |
Smokebox door semi-flat 12mm diameter each | |
| L153 | £ 1.00 |
Smokebox door LMS Type 15mm diameter each |
 |
| L155 | £ 1.00 |
Smokebox door LMS Type 12mm diameter each |
 |
| L156 | £ 1.00 |
Locomotive Buffers Oval set of 4 |
|
| L157 | £ 2.50 |
Heavy front or rear pony truck cast each |
|
| L158 | £ 1.00 |
Double Chimney GWR Castle or King each |
|
| L159 | £ 3.50 |
Loco Whistle Turned Brass pkt 2 |
|
| L160 | £ 2.50 |
Handrail Knobs 6” Standard 1.5mm pkt 12 |
|
| L161 | £ 2.50 |
Handrail Knobs 9” Long 2mm pkt 12 |
|
| L162 | £ 2.00 |
Britannia Smoke Deflectors Britannia -3 pairs different types per sheet |
|
| L201 | £ 2.50 |
Loco Lamps - unpainted - White-metal packet of 10 |
|
| L210 | £ 1.50 |
Set of Loco Tools: Shovel. Poker, Rake, Bucket |  |

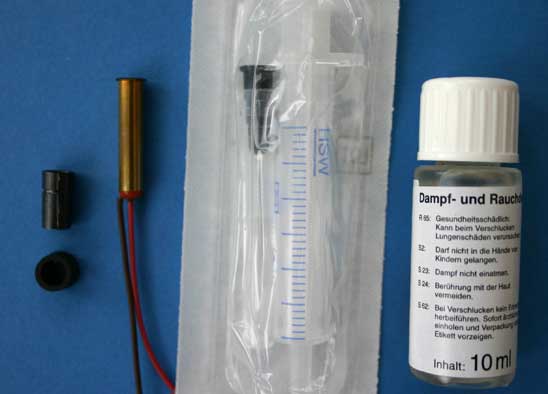

| LS99 | £18.75 |
Smoke Unit Kit 5mm dia (24mm long will need shortening to fit Triang locos) |
|
|
LS105 |
£ 7.50 |
Smoke Oil 50ml bottle |
|
NEW NON STOCK ITEMS Produced from Geoff Helliwell Masters. These can be ordered for production quantities please enquire for prices |
|||
| Early Pannier Tank Backhead, Dukedog and others |  |
||
| Dean Goods Backhead suitable for 2251 |  |
||
| City Backhead, also suits 28xx,2884 and maybe Grange and Halls |  |
||
| Dukedog Chimney |  |
||
| Dukedog Bogie Axle Guard |  |
||
| Dukedog Spring |  |
||
2251 Chimney Unknown Chimney 94 Pannier Chimney |
 |
||
| 1st 57xx pannier 2nd Dukedog
|
 |
||
4F (short & tall versions) 5th ? |
 |
||
Later Sand Boxes Sandboxes 57xx pannier maybe useful for many other ex GWR loco's |
 |
||
| Boxes ? |  |
||
| 4F Tender Axle Guard |  |
||
| 4F Mechanical Lubricator ex 4F but used on many loco's |  |
||
| Tool Box |  |
||
| ? |  |
||
3SMR Coupling Rods etc. |
|||

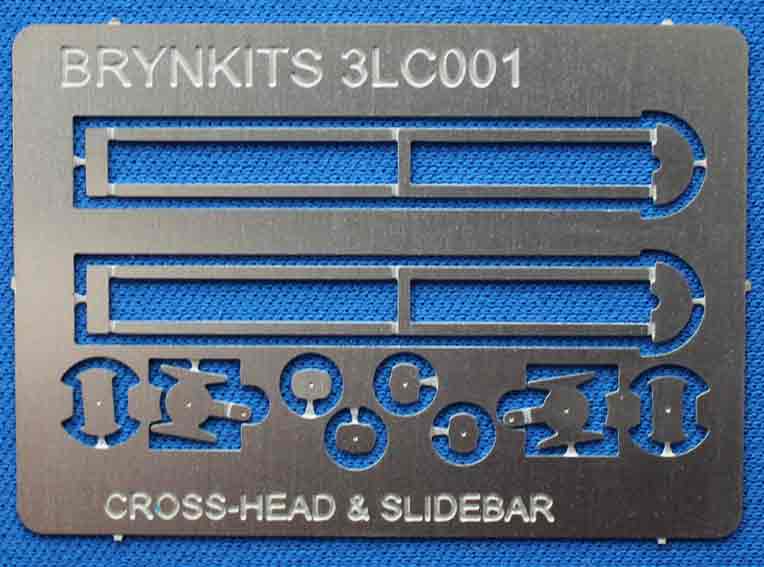

| L500 | £ 3.95 | CrossHeads Cast Nickle Silver |  |
| L501 | £ 1.00 | Tri-ang type Tapered Jinty, Shunter, Prairie, Castle per pair | |
| L502 | £ 1.75 | Outside Cranks Etched set of 6 | |
| L503 | £ 1.00 | Tri-ang type Plain Jinty, Shunter, Prairie, Castle per pair | |
| L504 | £ 1.00 | Tri-ang type Fluted Jinty, Shunter, Prairie, Castle per pair | |
| L505 | £ 1.00 | Chris Hardy type Plain or Fluted per pair | |
| L506 | £ 1.50 | SR Q1 Class Austerity Wheel discs for Hardy wheels set of 6 | |
| L507 | £ 1.50 | Outside Cranks Etched set of 4 | |
| L508 | £ 1.00 | Chris Hardy type Tapered per pair | |
| L509 | £ 1.00 | Tri-ang type Merchant Navy, Britannia per pair | |
| L510 | £ 4.50 | Diesel bogie side frames assorted sizes 7 pairs | |
3SMR Loco Chassis Kits - frames & rods |
|||
| LC601 | £ 5.50 | 7’3” x 8’3” wheelbase GWR 57xx, 94xx, 97xx with 12mm & 14.2mm spacers |
|
| LC603 | £ 4.50 | 7’3” x 8’3” wheelbase GWR 2251, Dean Goods |
|
| LC604 | £ 4.50 | 8’0” x 8’6” wheelbase SR Q |
|
| LC605 | £ 5.50 | 8’0” x 8’6” wheelbase SR Q1 (with Bulleid wheel discs)inc 12 & 4.2mm spacers |
|
| LC606 | £ 5.50 | 8’0” x 8’6” wheelbase LMS/MR 4F inc 12 & 4.2mm spacers |
|
| LC607 | £ 4.50 | 8’1” x 9’0” wheelbase GCR/LNER J11 |
|
| LC608 | £ 5.50 | 7’3” x 9’0” wheelbase GNR/LNER J50 inc 12 & 4.2mm spacers |
|
| LC609 | £ 4.95 | 6’10” x 7’5” wheelbase SR - G6 NER/LNER - J72 inc 12 & 4.2mm spacers |
|
| LC610 | £ 5.50 | 8’0” x 8’0” wheelbase LBSCR/SR E2 inc 12 & 4.2mm spacers |
|
| LC611 | £ 4.50 | 7’4” wheelbase GWR 14xx, 48xx, 58xx |
|
| LC612 | £ 4.50 | 9’6” wheelbase LMS/MR 2P |
|
| LC613 | £ 4.50 | 7’3” x 8’0” wheelbase GWR 56xx |
|
| LC614 | £ 6.50 | 7’0” x 7’9” wheelbase GWR 43xx, 93xx inc 12 & 4.2mm spacers |
|
| LC615 | £ 5.50 | 7’0” x 7’9” wheelbase GWR 31xx, 51xx, 61xx, 81xx inc 12 & 4.2mm spacers |
|
| LC616 | £ 5.50 | 10’0” wheelbase LSWR/SR T9 (incl.tender coal rails )inc 12 & 4.2mm spacers |
|
| LC617 | £ 4.50 | 5’9” x 5’9” wheelbase BR O8, O9 Diesel Shunter |
|
| LC618 | £ 4.95 | 8’6” wheelbase GWR Bulldog, Dukedog, City |
|
| LC619 | £ 5.95 | 5’8.5” x 5’5.5” x 5’11” w.b. GCR/GWR R.O.D.inc 12 & 4.2mm spacers |
|
| LC620 | £12.00 | 7’4” x 8’0” wheelbase LMS Stanier Black 5 Nickle Silver etch kit inc chassis spacers for both 12 and 14.2 gauge, bearings, cylinders and brake details |
|
| LC621 | £ 6.50 | 6’0” x 6’0” wheelbase LBSC/SR A1X Terrier | |
3SMR Loco Chassis Kits - as supplied in complete kits (original versions) |
|||
| LC701 | £ 6.75 | GWR 4-6-0 49xx Hall, 6959 Mod. Hall, Class * |
|
| LC702 | £ 6.75 | GWR 4-6-0 29xx Saint Class * |
|
| LC703 | £ 6.75 | GWR 4-6-0 40xx Star Class * |
|
| LC704 | £ 6.75 | GWR 4-6-0 68xx Grange Class * |
|
| LC705 | £ 6.75 | GWR 4-6-0 78xx Manor Class * |
|
| LC706 | £ 6.75 | GWR 4-6-0 10xx County Class * |
|
| LC707 | £ 6.75 | GWR 4-6-0 4073 Castle Class * |
|
| LC708 | £ 6.75 | GWR 2-8-0 28xx, 2884 Class * |
|
| LC709 | £ 8.00 | LMS 2-6-0 5P4F Crab Class |
|
| LC710 | £ 6.75 | LMS 0-8-0 7F Class |
|
| LC711 | £ 8.00 | SR 4-6-0 N15 King Arthur Class |
|
| LC712 | £ 6.75 | LSWR 0-6-0 700 Class |
|
| LC713 | £ 6.75 | LSWR 0-6-0 0395 Class |
|
| LC714 | £ 6.75 | LSWR 0-4-2 A12 Class |
|
| LC715 | £ 6.75 | LSWR 4-4-0 K10 Class |
|
| LC716 | £ 6.75 | SECR 4-4-0 D Class |
|
| LC717 | £ 6.75 | SECR 0-6-0 C Class |
|
| LC718 | £ 6.75 | SECR 0-4-4T H Class |
|
| LC719 | £ 6.75 | LSWR 0-4-4T O2 Class |
|
| LC720 | £ 6.75 | LSWR 0-6-0T G6 Class |
|
| LC721 | £ 6.75 | LSWR 0-4-4T T1 Class |
|
| LC722 | £ 6.75 | LSWR 0-4-4T M7 Class |
|
| LC723 | £ 6.75 | LNWR 4-6-0 Claughton |
|
| LC724 | £ 6.75 | GWR 2-6-0 Aberdare Class* |
|
| LC725 | £ 6.75 | LNWR 0-8-4T Beames 7F Heavy Freight Tank Loco | |
